SEA CHARIOT L380
Highly Maneuverable Underwater Vehicle (Max Depth: 20m; Deeper Versions Available)

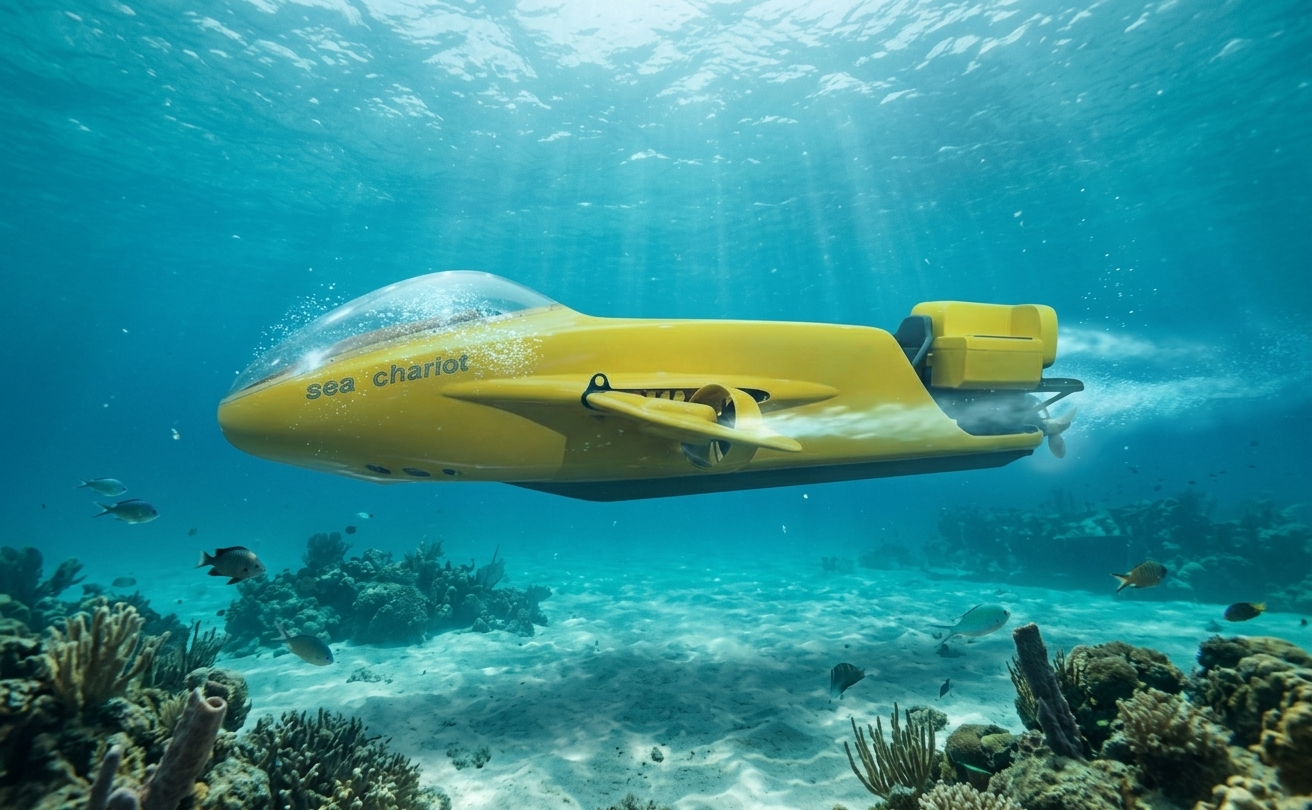

The SEA CHARIOT L380 is an underwater vehicle for recreational, commercial, and military tasks to a maximum depth of 20 meters, with deeper versions available on request. Applications include wreck exploration, photography, archaeology, fish farming, coral restoration, and marine biology. It carries three people (two divers and a diver-pilot) for about five hours, or two people with large-format photography equipment. Four 500-watt BLDC thrusters are powered by a 36V 200Ah lithium battery bank in a deep-water waterproof housing. An Arduino CPU assists the diver-pilot. The stable platform is suited to motion-picture and regular video photography. The craft includes an onboard 60-liter air bank, air-content and depth gauges, and a surface flotation system.
Technical Specifications
Mechanical Specifications
| Maximum Operational Depth | 20 meters; deeper versions available on request |
| Capacity | 3 people (2 divers and 1 diver-pilot), or 2 people plus large-format photography equipment |
| Underwater Speed | 3 knots typical |
| Buoyancy | Typically neutral with independent airbags for buoyancy control or assisted ascent |
| Air Supply | Onboard 60-liter air bank: 4 x 15-liter, 200-bar aluminium tanks |
| Construction | Reinforced fiberglass, 316 and 304 stainless steel, hard black anodized aluminium, epoxy finish |
| Colour | Sulfur Yellow (RAL 1016) |
| Environment | Military or Commercial |
Dimensions & Weight
| Overall Length | 3.8 meters |
| Maximum Height | 0.7 meters |
| Max Width (fins extended) | 1.80 meters |
| Max Width (fins retracted) | 1.10 meters |
| Net Weight in Air | Typically 300 kg |
Electrical Specifications
| Propulsion | 4 x 500-watt BLDC thrusters |
| Operation Controls | Waterproof joystick and foot controls |
| Electronics | Arduino CPU and digital monitor for battery status, craft depth, and air status |
| Power Source | 36V 200Ah lithium battery bank with BMS protection in a deep-water waterproof housing |
| Recharge Time | 3 hours typical |
| Operational Duration | 4.5 hours at 3 knots; 2 hours at 4 knots, subject to current conditions |
